About the Farsight Integration for IBM’s Resilient System

Farsight DNSDB integration for IBM Resilient SOAR platform is a collection of functions that connect to DNSDB API. These functions are also accompanied with Resilient workflows that demonstrate the use of each function. These workflows can then be triggered by Resilient rules to enrich the Indicators of Compromise (IoC) with Passive DNS Data provided by DNSDB API. The extension package is bundled with all of these components (functions, workflows, rules).

DNSDB is an artifact enrichment solution. Queries are possible for:

App Host Installation

All the components for running DNSDB function in a container already exist when using the App Host app.

To install,

[fn_dnsdb]
apikey =
server =

Integration Server Installation

Installation

$ unzip fn_dnsdb-x.x.x.zip
$ cd fn_dnsdb-x.x.x
$ pip install fn_dnsdb-x.x.x.tar.gz
$ resilient-circuits config -u -l fn-dnsdb
$ resilient-circuits customize -y -l fn-dnsdb
$ nano ~/.resilient/app.config
Config Required Example Description
apikey Yes d41d8cd98f00b204e9800998ecf8427e DNSDB API key
server Yes https://api.dnsdb.info DNSDB API Server
$ resilient-circuits selftest -l fn-dnsdb
$ resilient-circuits run

Uninstall the Integration

$ pip uninstall fn-dnsdb

Troubleshooting

There are several ways to verify the successful operation of a function.

Resilient Action Status

Resilient Scripting Log

Resilient Logs

Resilient-Circuits

Support

Name Version Author Support URL
fn_dnsdb 1.0.0 Farsight Security, Inc. https://farsightsecurity.com

Use Cases

DNSDB Co-Located Hosts

This use case describes the desire to easily identify Hosts that are co-located (based on Address) based on the input of a Host and a given point in time. The response would be a set of domains that also shared the same IP.

screenshot: co-located-hosts

if incident.start_date:
  time_first_before = str(incident.start_date/1000 + 86400)
  time_last_after = str(incident.start_date/1000 - 15552000)
else:
  time_first_before = str(incident.create_date/1000 + 86400)
  time_last_after = str(incident.create_date/1000 - 15552000)


inputs.pivot = """
[
\{\{"function": "rrset", "owner_name": "{0}", "rrtype": "{1}", "limit": {2}, \
    "time_first_before": "{3}", "time_last_after": "{4}"}},
\{\{"function": "rdata", "type": "ip", "pivot": "rdata"}}
]
""".format(artifact.value, "A", 10, time_first_before, time_last_after)

ip_records = workflow.properties.a_records["dnsdb_records"] +
    workflow.properties.aaaa_records["dnsdb_records"]

rrname_list = []

for item in ip_records:
  rrname_list.append(item["rrname"])


c_rdata_list = []

for item in workflow.properties.cname_records["dnsdb_records"]:
  for i in item["rdata"]:
    c_rdata_list.append(i)

aggregate_results = rrname_list + c_rdata_list

hosts_list_set = set(aggregate_results)
msg = "<ul>"
for item in hosts_list_set:
  msg += "<li>{}</li>".format(item)
msg += "</ul>"

incident.addNote(helper.createRichText("<div>{1} Co-Located Hosts Found for \
    {0}</div><div>{2}</div>".format(artifact.value, str(len(hosts_list_set)), msg)))
 ```

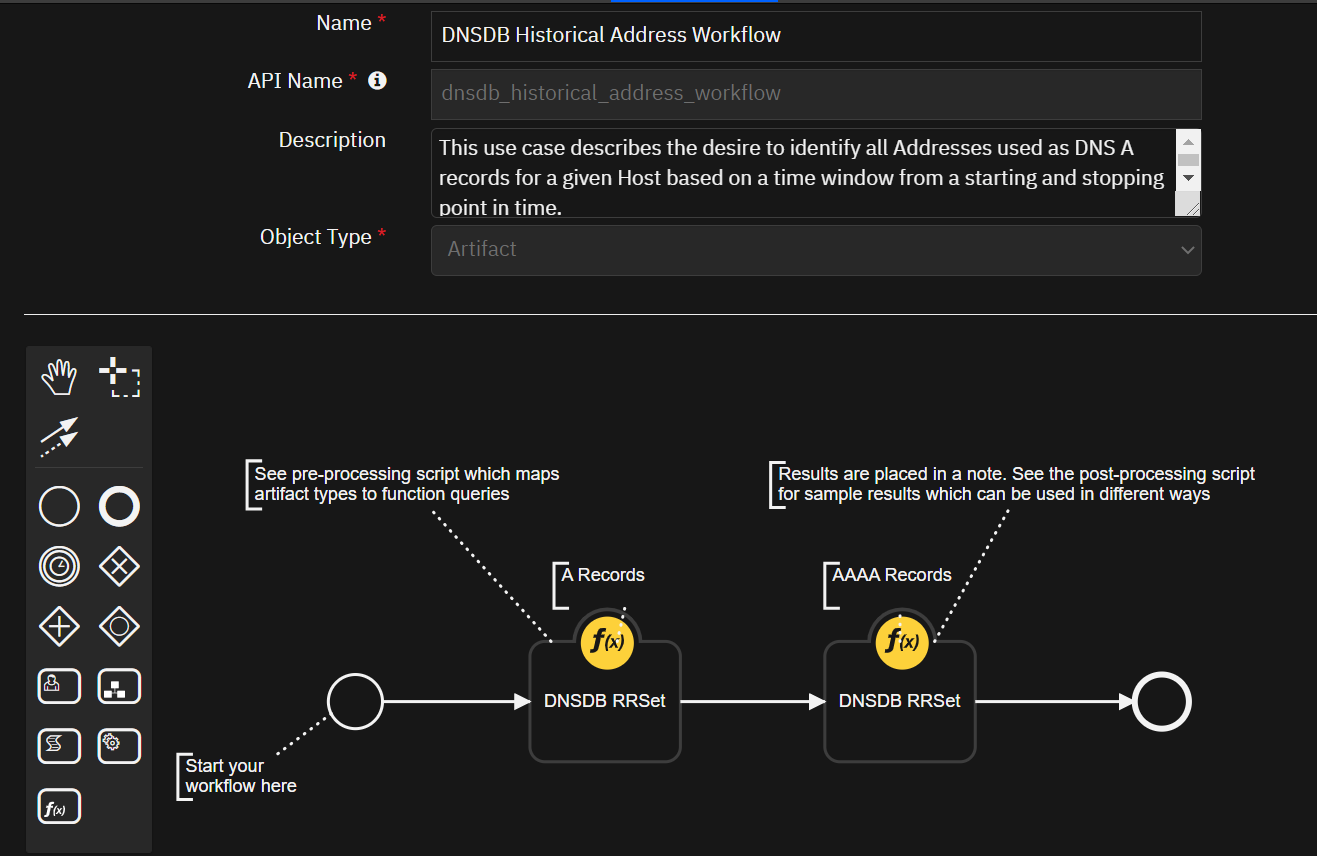

#### DNDB Historical Address

This use case describes the desire to identify all Addresses used as DNS A and AAAA
records for a given Host based on a time window from a starting and stopping point in
time.

![screenshot: historical-address ](/third-party/docassets/resilient-user-guide/historical_address_workflow.png)
{: .imgcentered}

- Example Pre-Process Script:

```python
inputs.owner_name = artifact.value
inputs.limit = 100
inputs.rrtype = 'A'


#calculate time_first_before, time_last_after based on incident occur date.
if incident.start_date:
  inputs.time_first_before = str(incident.start_date/1000 + 86400)
  inputs.time_last_after = str(incident.start_date/1000 - 15552000)
else:
  inputs.time_first_before = str(incident.create_date/1000 + 86400)
  inputs.time_last_after = str(incident.create_date/1000 - 15552000)
rdata_records = workflow.properties.a_records["dnsdb_records"] +
    workflow.properties.aaaa_records["dnsdb_records"]
rdata_list = []

for item in rdata_records:
  for i in item["rdata"]:
    rdata_list.append(i)

rdata_list_set = set(rdata_list)
msg = "<ul>"
for item in rdata_list_set:
  msg += "<li>{}</li>".format(item)
msg += "</ul>"

incident.addNote(helper.createRichText("<div>{1} Historical Address Found for \
    {0}</div><div>{2}</div>".format(artifact.value, str(len(rdata_list_set)), msg)))
 ```

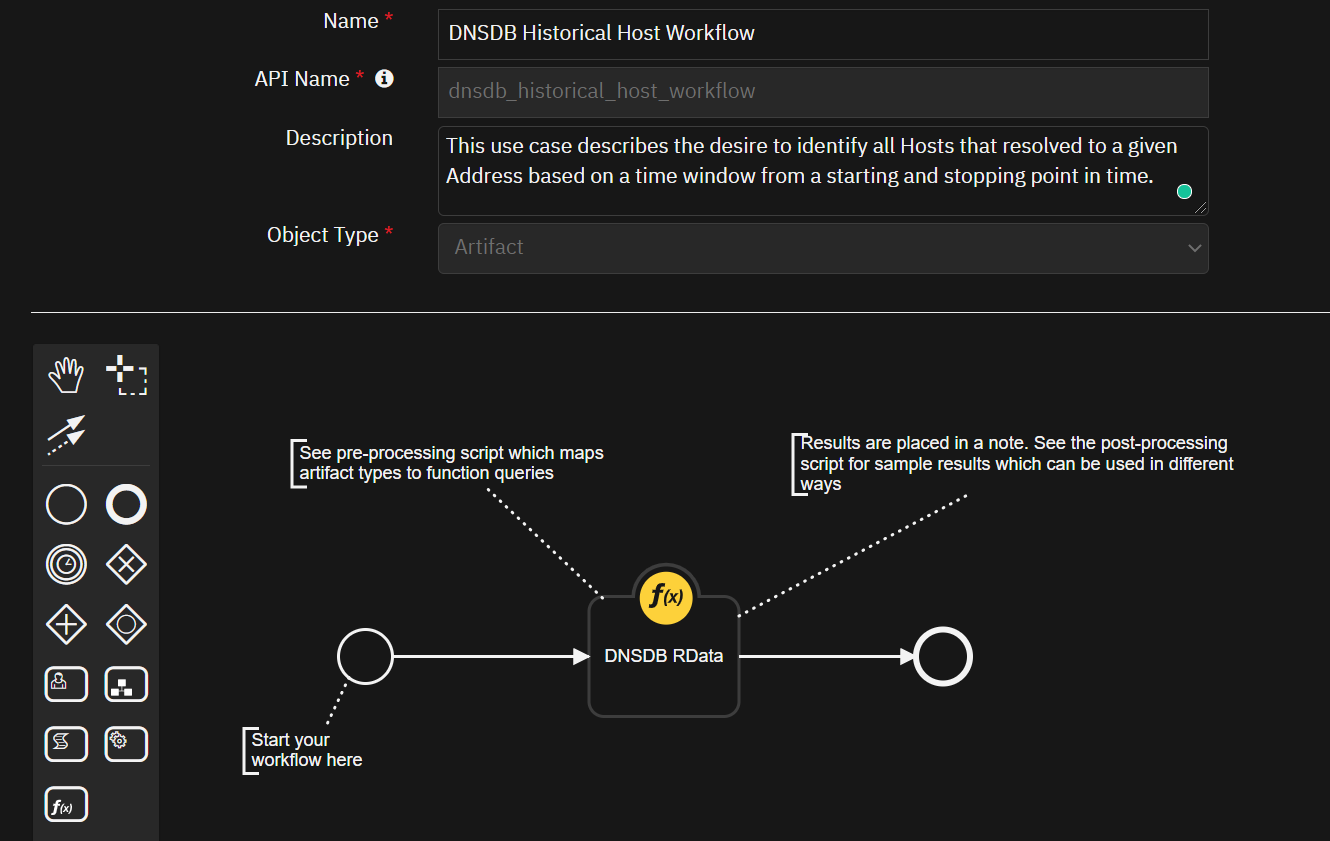

#### DNSDB Historical Hosts

This use case describes the desire to identify all Hosts that resolved to a given Address
based on a time window from a starting and stopping point in time.

![screenshot: historical-host](/third-party/docassets/resilient-user-guide/historical_host_workflow.png)
{: .imgcentered}

- Example Pre-Process Script:

```python
inputs.value=artifact.value
inputs.type = 'ip'
inputs.rrtype = 'ANY'
inputs.limit = 100

#calculate time_first_before, time_last_after based on incident occur date.
if incident.start_date:
  inputs.time_first_before = str(incident.start_date/1000 + 86400)
  inputs.time_last_after = str(incident.start_date/1000 - 15552000)
else:
  inputs.time_first_before = str(incident.create_date/1000 + 86400)
  inputs.time_last_after = str(incident.create_date/1000 - 15552000)
dnsdb_records = results["dnsdb_records"]

host_list = []
for item in dnsdb_records:
  host_list.append(item["rrname"])

host_names_msg = "<ul>"
for item in set(host_list):
  host_names_msg += "<li>{}</li>".format(item)
host_names_msg += "</ul>"

incident.addNote(helper.createRichText("<div>{1} Historical Hosts Found for: \
    {0}</div><div>{2}</div>".format(artifact.value, str(len(set(host_list))), host_names_msg)))

Function - DNSDB Flex

DNSDB Flex function allows you to search DNSDB by regular expressions and globs (aka wildcarding).

screenshot: fn-dnsdb-flex

Name Type Required Description
key select Yes The search key, can be rrnames(supports “forward” searches based on the owner name of an RRSet) or rdata(supports “inverse” searches based on RData record values).
limit number No Limit for the number of results returned via these lookup methods.
method select Yes The search method, it can be regex(regular expression search) or glob(full wildcarding).
offset number No How many rows to offset (e.g. skip) in the results.
rrtype text No The resource record type of the RRSet, either using the standard DNS type mnemonic, or an RFC 3597 generic type, i.e. the string TYPE immediately followed by the decimal rrtype number.
time_first_after text No Provide results after the defined timestamp for when the DNS record was first observed. For example, the URL parameter “time_first_after=-31536000” will only provide results that were first observed within the last year.
time_first_before text No Provide results before the defined timestamp for when the DNS record was first observed. For example, the URL parameter “time_first_before=1420070400” will only provide matching DNS records that were first observed before (or older than) January 1, 2015.
time_last_after text No Provide results after the defined timestamp for when the DNS record was last observed. For example, the URL parameter “time_last_after=-2678400” will only provide results that were last observed after 31 days ago.
time_last_before text No Provide results before the defined timestamp for when the DNS record was last observed. For example, the URL parameter “time_last_before=1356998400” will only provide results for DNS records that were last observed before 2013.
value text Yes The value to search DNSDB records.
results = {
        "dnsdb_records": [
            {
                "from_zone_file": false,
                "rrname": "farsightsecurity.yahoo.com.au",
                "rrtype": "CNAME"
            },
            {
                "from_zone_file": false,
                "rrname": "farsightsecurity-2432183.starbucks.com.cn",
                "rrtype": "A"
            },
            {
                "from_zone_file": false,
                "rrname": "farsightsecurity.com.cn",
                "rrtype": "NS"
            },
            {
                "from_zone_file": false,
                "rrname": "farsightsecurity.com.cn",
                "rrtype": "SOA"
            },
            {
                "from_zone_file": false,
                "rrname": "farsightsecurity.com.cn",
                "rrtype": "CNAME"
            },
            {
                "from_zone_file": false,
                "rrname": "www.farsightsecurity.com.cn",
                "rrtype": "CNAME"
            },
            {
                "from_zone_file": false,
                "rrname": "farsightsecurity.damai.cn",
                "rrtype": "CNAME"
            }
        ]
}

Workflows

inputs.value = artifact.value
dnsdb_records = results['dnsdb_records']

incident.addNote(helper.createRichText("<div>{0} DNSDB Flex Records \
    Found</div>".format(str(len(dnsdb_records)))))

Function - DNSDB RData

This function queries DNSDB’s RData index, which supports “inverse” lookups based on RData record values. In contrast to the RRSet lookup method, RData lookups return only individual resource records and not full resource record sets, and lack bailiwick metadata. An RRSet lookup on the owner name reported via an RData lookup must be performed to retrieve the full RRSet and bailiwick.

screenshot: fn-dnsdb-rdata

Name Type Required Tooltip
aggr boolean No Aggregated results group identical RRSets across all time periods and is the classic behavior from querying the DNSDB.
limit number No Limit for the number of results returned via these lookup methods.
offset number No How many rows to offset (e.g. skip) in the results.
rrtype text No The resource record type of the RRSet, either using the standard DNS type mnemonic, or an RFC 3597 generic type, i.e. the string TYPE immediately followed by the decimal rrtype number.
time_first_after text No Provide results after the defined timestamp for when the DNS record was first observed. For example, the URL parameter “time_first_after=-31536000” will only provide results that were first observed within the last year.
time_first_before text No Provide results before the defined timestamp for when the DNS record was first observed. For example, the URL parameter “time_first_before=1420070400” will only provide matching DNS records that were first observed before (or older than) January 1, 2015.
time_last_after text No Provide results after the defined timestamp for when the DNS record was last observed. For example, the URL parameter “time_last_after=-2678400” will only provide results that were last observed after 31 days ago.
time_last_before text No Provide results before the defined timestamp for when the DNS record was last observed. For example, the URL parameter “time_last_before=1356998400” will only provide results for DNS records that were last observed before 2013.
type select Yes The type specifies how value is interpreted. type may be name, ip or raw
value text Yes The value to search DNSDB records.
results = {
        "dnsdb_records": [
            {
                "count": 606,
                "from_zone_file": false,
                "rdata": [
                    "www.farsightsecurity.com."
                ],
                "rrname": "scout.dnsdb.info",
                "rrtype": "CNAME",
                "time_first": "2020-03-27T18:37:24Z",
                "time_last": "2020-10-21T18:11:47Z"
            },
            {
                "count": 121,
                "from_zone_file": false,
                "rdata": [
                    "www.farsightsecurity.com."
                ],
                "rrname": "scout-beta.dnsdb.info",
                "rrtype": "CNAME",
                "time_first": "2020-08-20T22:52:29Z",
                "time_last": "2020-10-20T17:54:58Z"
            },
            {
                "count": 546,
                "from_zone_file": false,
                "rdata": [
                    "www.farsightsecurity.com."
                ],
                "rrname": "81.64-26.140.160.66.in-addr.arpa",
                "rrtype": "PTR",
                "time_first": "2013-12-10T01:20:08Z",
                "time_last": "2020-10-10T15:47:19Z"
            }
        ]
}

Workflows

inputs.value = artifact.value
dnsdb_records = results['dnsdb_records']

incident.addNote(helper.createRichText("<div>{0} DNSDB RData Records \
    Found</div>".format(str(len(dnsdb_records)))))

Function - DNSDB RRSet

This function queries DNSDB’s RRSet index, which supports “forward” lookups based on the owner name of an RRSet.

screenshot: fn-dnsdb-rrset

Name Type Required Tooltip
aggr boolean No Aggregated results group identical RRSets across all time periods and is the classic behavior from querying the DNSDB.
bailiwick text No The “bailiwick” of an RRSet in DNSDB observed via passive DNS replication is the closest enclosing zone delegated to a nameserver which served the RRset. The “bailiwick” of an RRSet in DNSDB observed in a zone file is simply the name of the zone containing the RRSet.
limit number No Limit for the number of results returned via these lookup methods.
offset number No How many rows to offset (e.g. skip) in the results.
owner_name text Yes DNS name specified in DNS presentation format.
rrtype text No The resource record type of the RRSet, either using the standard DNS type mnemonic, or an RFC 3597 generic type, i.e. the string TYPE immediately followed by the decimal rrtype number.
time_first_after text No Provide results after the defined timestamp for when the DNS record was first observed. For example, the URL parameter “time_first_after=-31536000” will only provide results that were first observed within the last year.
time_first_before text No Provide results before the defined timestamp for when the DNS record was first observed. For example, the URL parameter “time_first_before=1420070400” will only provide matching DNS records that were first observed before (or older than) January 1, 2015.
time_last_after text No Provide results after the defined timestamp for when the DNS record was last observed. For example, the URL parameter “time_last_after=-2678400” will only provide results that were last observed after 31 days ago.
time_last_before text No Provide results before the defined timestamp for when the DNS record was last observed. For example, the URL parameter “time_last_before=1356998400” will only provide results for DNS records that were last observed before 2013.
results = {
        "dnsdb_records": [
            {
                "bailiwick": "com",
                "count": 19,
                "from_zone_file": true,
                "rdata": [
                    "ns.lah1.vix.com.",
                    "ns1.isc-sns.net.",
                    "ns2.isc-sns.com.",
                    "ns3.isc-sns.info."
                ],
                "rrname": "farsightsecurity.com",
                "rrtype": "NS",
                "time_first": "2013-06-30T16:21:41Z",
                "time_last": "2013-07-18T16:22:47Z"
            },
            {
                "bailiwick": "com",
                "count": 157,
                "from_zone_file": true,
                "rdata": [
                    "ns.sjc1.vix.com.",
                    "ns.sql1.vix.com."
                ],
                "rrname": "farsightsecurity.com",
                "rrtype": "NS",
                "time_first": "2013-01-24T17:18:05Z",
                "time_last": "2013-06-29T16:19:01Z"
            },
            {
                "bailiwick": "com",
                "count": 1890,
                "from_zone_file": true,
                "rdata": [
                    "ns5.dnsmadeeasy.com.",
                    "ns6.dnsmadeeasy.com.",
                    "ns7.dnsmadeeasy.com."
                ],
                "rrname": "farsightsecurity.com",
                "rrtype": "NS",
                "time_first": "2013-07-19T16:22:00Z",
                "time_last": "2020-07-24T16:02:05Z"
            },
            {
                "bailiwick": "farsightsecurity.com",
                "count": 6350,
                "from_zone_file": false,
                "rdata": [
                    "66.160.140.81"
                ],
                "rrname": "farsightsecurity.com",
                "rrtype": "A",
                "time_first": "2013-09-25T15:37:03Z",
                "time_last": "2015-04-01T06:17:25Z"
            },
            {
                "bailiwick": "farsightsecurity.com",
                "count": 36770,
                "from_zone_file": false,
                "rdata": [
                    "104.244.13.104"
                ],
                "rrname": "farsightsecurity.com",
                "rrtype": "A",
                "time_first": "2015-04-01T14:17:52Z",
                "time_last": "2018-09-27T00:29:43Z"
            }
        ]
}

Workflows

inputs.owner_name = artifact.value
dnsdb_records = results['dnsdb_records']

incident.addNote(helper.createRichText("<div>{0} DNSDB RRSet Records Found</div>".format(str(len(dnsdb_records)))))

Function - DNSDB Rate Limit

This function queries the “rate limit” endpoint to obtain information about the api key’s service limits and quotas.

Function - DNSDB Pivot

This function allows you to execute a series of queries against DNSDB. Each subsequent search “pivots” on the keys returned by the previous. You may pivot using the rrname, rdata, or raw_rdata field. This function takes a single argument, “pivot”, which is a json-encoded array of dictionaries. Each dictionary contains parameters for a DNSDB search, including a “function” field which may be any of “rdata”, “rrset”, or “flex”. Arguments for each search are the same as their corresponding Resilient function.

Required arguments:

Optional arguments:

The second through last dictionaries must each contain a “pivot” key which may be “rrname”, “rdata”, or “raw_rdata”, and indicates which field from the preceding query should be used as the key for the next.

inputs.pivot = """
[
\{\{"function": "rrset", "owner_name": "{0}", "rrtype": "{1}", "limit": {2},
    "time_first_before": "{3}", "time_last_after": "{4}"}},
\{\{"function": "rdata", "type": "ip", "pivot": "rdata"}}
]
""".format(artifact.value, "A", 10, time_first_before, time_last_after)

Additional Information

Rules

Rule Name Object Workflow Triggered
DNSDB RRSet Lookup artifact rrset_workflow
DNSDB RData Lookup artifact rdata_workflow
DNSDB Flex Lookup artifact flex_workflow
DNSDB Co-Located Host Lookup artifact dnsdb_colocated_host_workflow
DNSDB Historical Address Lookup artifact dnsdb_historical_address_workflow
DNSDB Historical Hosts Lookup artifact dnsdb_historical_host_workflow

Release Notes

About Farsight Security

Farsight Security, Inc. is the world’s leading provider of historical and real-time DNS intelligence solutions. We enable security teams to qualify, enrich, and correlate all sources of threat data and ultimately save time when it is most critical - during an attack or investigation. Our solutions provide enterprise, government, and security industry personnel and platforms with unmatched global visibility, context, and response. Farsight Security is headquartered in San Mateo, California, USA. To learn more about how we can empower your security, threat, and intelligence platforms and security organization with Farsight Security passive DNS (pDNS) and threat intelligence solutions, please visit us at www.farsightsecurity.com or follow us on Twitter at @FarsightSecInc.
